Setup CloudPanel Remote Backups to OneDrive or Google Drive

Backup is a very important piece in every application, while self-hosting my own apps I need to make sure I have a good backup strategy so in case something happens with the website or the server I have a way to restore it. Your hosting provider account may be hacked and everything can be deleted, that’s why you need to have a remote backup that you can rely on. Is not enough to backup your apps locally or in the same provider but you should have also a remote backup that you can use in case something goes wrong.

CloudPanel is a good open source alternative that can help you self host your applications and offers a way to do remote backups automatically at certain periods so you can have a better sleep. It uses Rclone behind the hood to do remote backups and you can choose various sources like Amazon S3, Wasabi, Digital Ocean Spaces, Dropbox, Google Drive, SFTP.

Some of them are easy to configure like Digital Ocean Spaces, Dropbox, SFTP as you do it directly in the UI interface but for others like OneDrive or Personal Google Drive you need to run through the Rclone configurations.

In this article and video we are going to go through all the steps you need to do to configure remote backups in CloudPanel to OneDrive or Google Drive. The process should be the same and in the end you will have a scheduled backup that will run and store your files securely.

In case you are interested on CloudPanel articles you can check:

• Setup CloudPanel As Reverse Proxy with Docker and Dockge
• Install CloudPanel and Host Node.js Apps

How to Setup CloudPanel Remote Backups to OneDrive or Google Drive

Let’s go through all the steps you need to have remote backups enabled on CloudPanel and have them run automaticaly.

1. Create the folder in OneDrive or Google Drive

First thing will be to go into your cloud provider that you have chosen to do the backups and create a folder where the backups will be stored. I have seen there are issues if the folder does not exist so that’s why you should create one from the start. For this tutorial I will create one called dragos-cloudpanel-backups that I will use.

2. Connect to the Server with SSH Tunnel

As for configuring the OneDrive or Google Drive you will need to authenticate via Browser you will need to configure an SSH Tunel to your server that will be used. To do this you just need to run:

ssh -L localhost:53682:localhost:53682 username@remote_server

You just need to change username with your user of the server and remote_server with the server IP this will connect your local to the server and with localhost:53682 you can access the browser to get the token. You can check more on Rclone doc for remote setup

This will work well on Mac, for Windows you should use Putty and do there the port forwarding, the WSL can also work. You can check: How to Use SSH Port Forwarding & PuTTY

3. Run Rclone config for OneDrive

Rclone config needs to be run to set this up as you don’t have any option in the CloudPanel UI

to do this you just run :

rclone config

and follow the configs as below:

root@cp-dg:~# rclone config
2024/03/14 13:27:43 NOTICE: Config file "/root/.config/rclone/rclone.conf" not found - using defaults
No remotes found - make a new one
n) New remote
s) Set configuration password
q) Quit config
n/s/q> n
name> remote
Type of storage to configure.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
 1 / 1Fichier
   \ "fichier"
 2 / Alias for an existing remote
   \ "alias"
 3 / Amazon Drive
   \ "amazon cloud drive"
 4 / Amazon S3 Compliant Storage Provider (AWS, Alibaba, Ceph, Digital Ocean, Dreamhost, IBM COS, Minio, Tencent COS, etc)
   \ "s3"
 5 / Backblaze B2
   \ "b2"
 6 / Box
   \ "box"
 7 / Cache a remote
   \ "cache"
 8 / Citrix Sharefile
   \ "sharefile"
 9 / Dropbox
   \ "dropbox"
10 / Encrypt/Decrypt a remote
   \ "crypt"
11 / FTP Connection
   \ "ftp"
12 / Google Cloud Storage (this is not Google Drive)
   \ "google cloud storage"
13 / Google Drive
   \ "drive"
14 / Google Photos
   \ "google photos"
15 / Hubic
   \ "hubic"
16 / In memory object storage system.
   \ "memory"
17 / Jottacloud
   \ "jottacloud"
18 / Koofr
   \ "koofr"
19 / Local Disk
   \ "local"
20 / Mail.ru Cloud
   \ "mailru"
21 / Microsoft Azure Blob Storage
   \ "azureblob"
22 / Microsoft OneDrive
   \ "onedrive"
23 / OpenDrive
   \ "opendrive"
24 / OpenStack Swift (Rackspace Cloud Files, Memset Memstore, OVH)
   \ "swift"
25 / Pcloud
   \ "pcloud"
26 / Put.io
   \ "putio"
27 / SSH/SFTP Connection
   \ "sftp"
28 / Sugarsync
   \ "sugarsync"
29 / Transparently chunk/split large files
   \ "chunker"
30 / Union merges the contents of several upstream fs
   \ "union"
31 / Webdav
   \ "webdav"
32 / Yandex Disk
   \ "yandex"
33 / http Connection
   \ "http"
34 / premiumize.me
   \ "premiumizeme"
35 / seafile
   \ "seafile"
Storage> 22
** See help for onedrive backend at: https://rclone.org/onedrive/ **

OAuth Client Id
Leave blank normally.
Enter a string value. Press Enter for the default ("").
client_id>
OAuth Client Secret
Leave blank normally.
Enter a string value. Press Enter for the default ("").
client_secret>
Edit advanced config? (y/n)
y) Yes
n) No (default)
y/n>
Remote config
Use auto config?
 * Say Y if not sure
 * Say N if you are working on a remote or headless machine
y) Yes (default)
n) No
y/n>
If your browser doesn't open automatically go to the following link: http://127.0.0.1:53682/auth?state=LK_cdbrOrIT
Log in and authorize rclone for access
Waiting for code...
Got code
Choose a number from below, or type in an existing value
 1 / OneDrive Personal or Business
   \ "onedrive"
 2 / Root Sharepoint site
   \ "sharepoint"
 3 / Type in driveID
   \ "driveid"
 4 / Type in SiteID
   \ "siteid"
 5 / Search a Sharepoint site
   \ "search"
Your choice> 1
Found 1 drives, please select the one you want to use:
0:  (personal) id=f9f661d3066d45ed
Chose drive to use:> 0
Found drive 'root' of type 'personal', URL: https://onedrive.live.com/?cid=f9f661d3066d45ed
Is that okay?
y) Yes (default)
n) No
y/n>
--------------------
[remote]
token = {"access_token":"EwCIA8l6BAAUTTy6dbu0OLf3Lzl3R/vfUXxq8g8AAYnaLJ3lAxqLzQiNrimK2Z60ZwmFXVR0Buqhnisc5QEW4tUHFH5eFg+/AUNEWMmTptERPkQh4BU3paTlktMnqX4oG4/6LSUPJmRAQZvQrUX5K4tGHzJ/t$","expiry":"2024-03-14T14:28:23.186484017Z"}
drive_id = f9f661d3066d45ed
drive_type = personal
--------------------
y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d>
Current remotes:

Name                 Type
====                 ====
remote               onedrive

e) Edit existing remote
n) New remote
d) Delete remote
r) Rename remote
c) Copy remote
s) Set configuration password
q) Quit config
e/n/d/r/c/s/q> q

In the above you will see that the below have been chosen:

• n) New remote - to create a new config file
• name> remote - you need to provide this exact name otherwise CloudPanel will not know what to do
• Storage> 22 - this is for Microsoft One Drive
• client_id - client_secret - just enter, nothing to do
• Edit advanced config? - n) No (default) - the default which is No
• Use auto config? - y) Yes (default) - the yes default one
• http://127.0.0.1:53682/auth?state=LK_cdbrOrITOdn9V - link with a state will be provided that you need to use in the browser to get the token, just open it in browser.
• 1 / OneDrive Personal or Business - choose the personal
• Chose drive to use:> 0 - the 0 drive
• y) Yes this is OK (default) - the default in here
• *e/n/d/r/c/s/q> q - q to finish with settings

This would link Rclone to one drive.

4. Run Rclone config for Google Drive

As for OneDrive you need to run the same:

rclone config

And then choose the Google Drive options:

root@cp-dg:~/.config/rclone# rclone config
2024/03/14 13:54:24 NOTICE: Config file "/root/.config/rclone/rclone.conf" not found - using defaults
No remotes found - make a new one
n) New remote
s) Set configuration password
q) Quit config
n/s/q> n
name> remote
Type of storage to configure.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
 1 / 1Fichier
   \ "fichier"
 2 / Alias for an existing remote
   \ "alias"
 3 / Amazon Drive
   \ "amazon cloud drive"
 4 / Amazon S3 Compliant Storage Provider (AWS, Alibaba, Ceph, Digital Ocean, Dreamhost, IBM COS, Minio, Tencent COS, etc)
   \ "s3"
 5 / Backblaze B2
   \ "b2"
 6 / Box
   \ "box"
 7 / Cache a remote
   \ "cache"
 8 / Citrix Sharefile
   \ "sharefile"
 9 / Dropbox
   \ "dropbox"
10 / Encrypt/Decrypt a remote
   \ "crypt"
11 / FTP Connection
   \ "ftp"
12 / Google Cloud Storage (this is not Google Drive)
   \ "google cloud storage"
13 / Google Drive
   \ "drive"
14 / Google Photos
   \ "google photos"
15 / Hubic
   \ "hubic"
16 / In memory object storage system.
   \ "memory"
17 / Jottacloud
   \ "jottacloud"
18 / Koofr
   \ "koofr"
19 / Local Disk
   \ "local"
20 / Mail.ru Cloud
   \ "mailru"
21 / Microsoft Azure Blob Storage
   \ "azureblob"
22 / Microsoft OneDrive
   \ "onedrive"
23 / OpenDrive
   \ "opendrive"
24 / OpenStack Swift (Rackspace Cloud Files, Memset Memstore, OVH)
   \ "swift"
25 / Pcloud
   \ "pcloud"
26 / Put.io
   \ "putio"
27 / SSH/SFTP Connection
   \ "sftp"
28 / Sugarsync
   \ "sugarsync"
29 / Transparently chunk/split large files
   \ "chunker"
30 / Union merges the contents of several upstream fs
   \ "union"
31 / Webdav
   \ "webdav"
32 / Yandex Disk
   \ "yandex"
33 / http Connection
   \ "http"
34 / premiumize.me
   \ "premiumizeme"
35 / seafile
   \ "seafile"
Storage> 13
** See help for drive backend at: https://rclone.org/drive/ **

Google Application Client Id
Setting your own is recommended.
See https://rclone.org/drive/#making-your-own-client-id for how to create your own.
If you leave this blank, it will use an internal key which is low performance.
Enter a string value. Press Enter for the default ("").
client_id>
OAuth Client Secret
Leave blank normally.
Enter a string value. Press Enter for the default ("").
client_secret>
Scope that rclone should use when requesting access from drive.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value
 1 / Full access all files, excluding Application Data Folder.
   \ "drive"
 2 / Read-only access to file metadata and file contents.
   \ "drive.readonly"
   / Access to files created by rclone only.
 3 | These are visible in the drive website.
   | File authorization is revoked when the user deauthorizes the app.
   \ "drive.file"
   / Allows read and write access to the Application Data folder.
 4 | This is not visible in the drive website.
   \ "drive.appfolder"
   / Allows read-only access to file metadata but
 5 | does not allow any access to read or download file content.
   \ "drive.metadata.readonly"
scope> 1
ID of the root folder
Leave blank normally.

Fill in to access "Computers" folders (see docs), or for rclone to use
a non root folder as its starting point.

Enter a string value. Press Enter for the default ("").
root_folder_id>
Service Account Credentials JSON file path
Leave blank normally.
Needed only if you want use SA instead of interactive login.

Leading `~` will be expanded in the file name as will environment variables such as `${RCLONE_CONFIG_DIR}`.

Enter a string value. Press Enter for the default ("").
service_account_file>
Edit advanced config? (y/n)
y) Yes
n) No (default)
y/n>
Remote config
Use auto config?
 * Say Y if not sure
 * Say N if you are working on a remote or headless machine
y) Yes (default)
n) No
y/n>
If your browser doesn't open automatically go to the following link: http://127.0.0.1:53682/auth?state=lJ52bPvVGaG
Log in and authorize rclone for access
Waiting for code...
Got code
Configure this as a team drive?
y) Yes
n) No (default)
y/n>

--------------------
[remote]
scope = drive
token = {"access_token":"ya29.a0Ad52N3_J72wn8dG4c","token_type":"Bearer","refresh_token":"1//0czUgUBU95R8GCgYIARAAG-JK9klco7JLyA","expiry":"2024-03-14T14:55:20.87391752Z"}
--------------------
y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d>
Current remotes:

Name                 Type
====                 ====
remote               drive

e) Edit existing remote
n) New remote
d) Delete remote
r) Rename remote
c) Copy remote
s) Set configuration password
q) Quit config
e/n/d/r/c/s/q> q

In the above you will see that the below have been chosen:

• n) New remote - to create a new config file
• name> remote - you need to provide this exact name otherwise CloudPanel will not know what to do
• Storage> 13 - this is for Google Drive
• client_id - client_secret - just enter, nothing to do
• scope> 1 - Full access all files, excluding Application Data Folder.
• Edit advanced config? - n) No (default) - the default which is No
• root_folder_id - service_account_file - just hit enter
• Use auto config? - y) Yes (default) - the yes default one
• http://127.0.0.1:53682/auth?state=LK_cdbrOrI - link with a state will be provided that you need to use in the browser to get the token, just open it in browser.
• y) Yes this is OK (default) - the default in here
• *e/n/d/r/c/s/q> q - q to finish with settings

And after Rclone is linked to Google Drive and you can configure in CloudPanel UI.

5. Configure CloudPanel Remote Backups

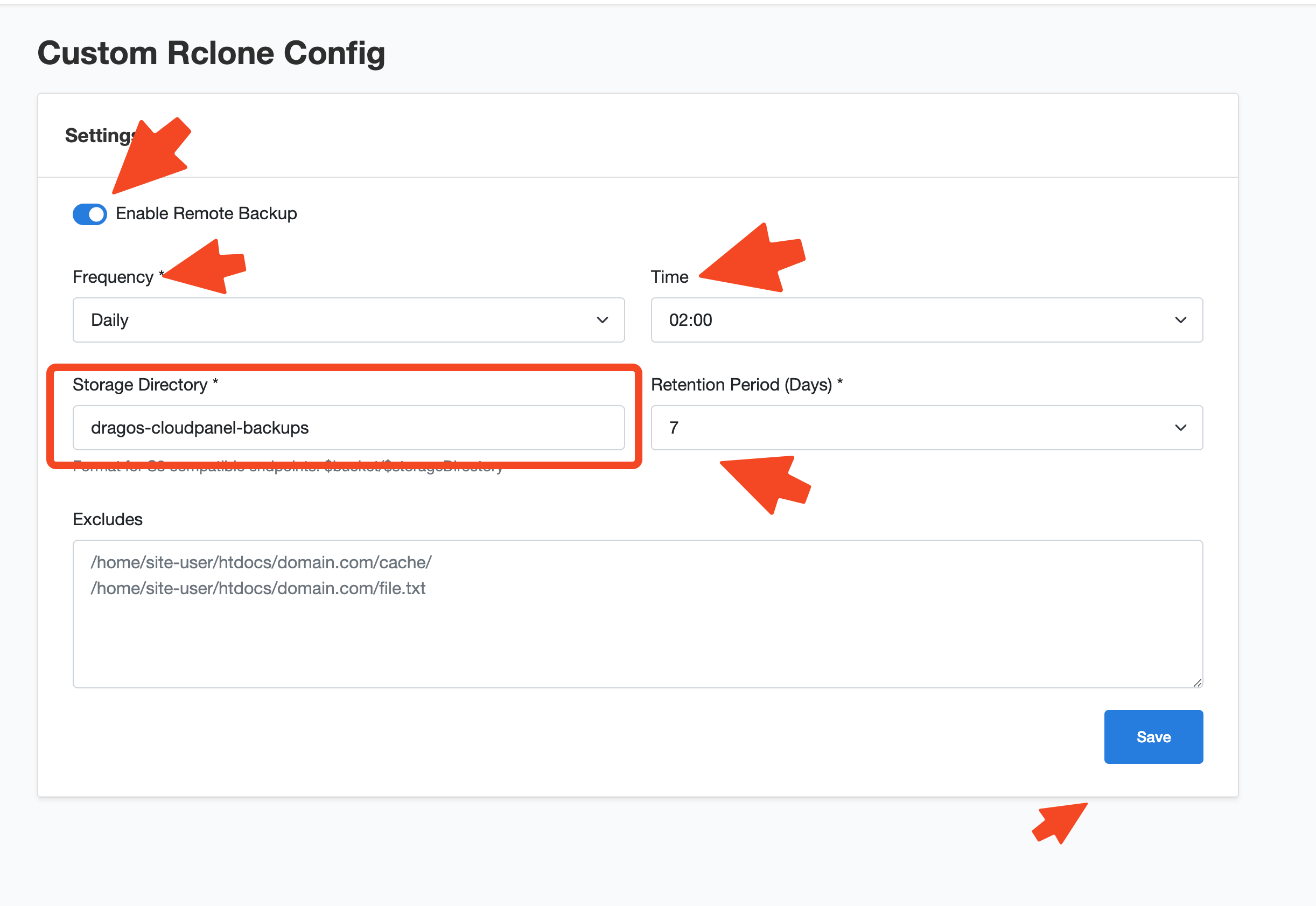

Login to CloudPanel and in Admin Area - Backups choose Custom Rclone Config

In there, you will have the settings where you choose the Frequency, Time, Retention Period (Days) and Storage Directory, the one you created earlier.

After you save this you can hit Create Backup so one to start now.

6. Check That Backup has been done in OneDrive or Google Drive.

In couple of minutes you should see that files started to be seen in the directory you created, in my case dragos-cloudpanel-backups. In function of the size you have for your apps it can take several minutes to 1h, it depends.

7. Alter the default backup schedule for CloudPanel

In case you need to have more often backups for the app or for the database you have the file /etc/cron.d/clp

In here you have the below 2 options that can be altered to change the schedulers, just be careful:

15 3 * * * clp /usr/bin/bash -c "/usr/bin/clpctl db:backup --ignoreDatabases='db1,db2' --retentionPeriod=7" &> /dev/null
15 4 * * * clp /home/clp/scripts/create_backup.sh &> /dev/null

They can be altered in function of your needs to have more often DB backups for your applications.

Conclusions

This is how easy it is to configure the CloudPanel backups, in a couple of minutes you will enable remote backups in CloudPanel and will be protected in case bad things happens.
